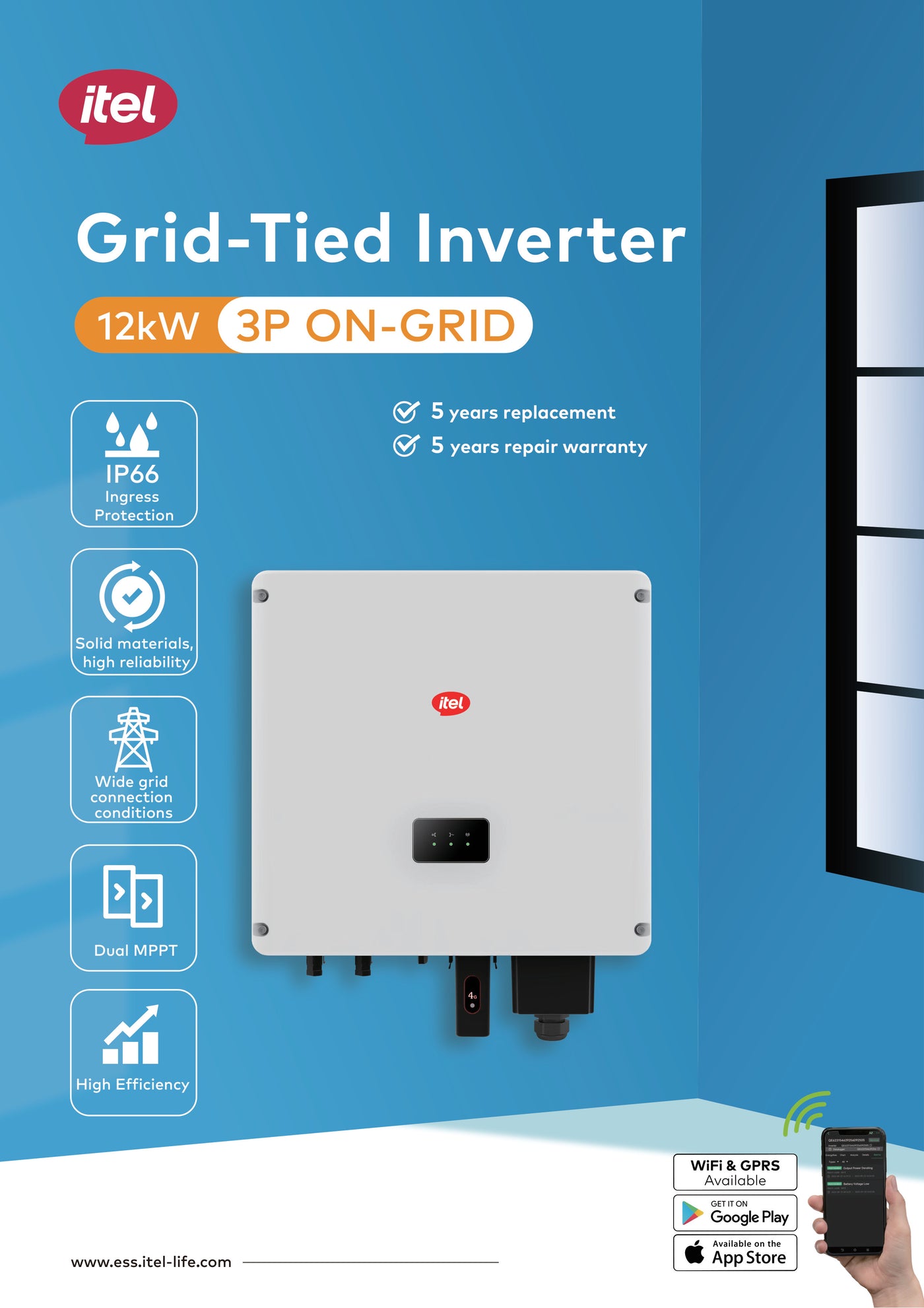

IGT-12KTA

Regular price Rs.100,000.00

Category Specification Details Model IGT-12KTA Efficiency MPPT Tracking Efficiency 99.9% Max. Conversion Efficiency (PV) 98.7% European Efficiency 98.1% PV String...

Color :

White

Model :

IGT-12KTA

I agree with the terms and conditions

Wishlist Compare

Vendor: Itel

Type: N/a

Sku: N/a

Free shipping

Secure payment

Best Warrenty

Shipping information

Only For Karachi

👀 customers are viewing this product

🔥 13 sold in last 18 hours

Guarantee safe checkout

IGT-12KTA - White / IGT-12KTA

Rs.100,000.00

Color

Model

Description Material Reviews

Category	Specification	Details
Model		IGT-12KTA
Efficiency	MPPT Tracking Efficiency	99.9%
	Max. Conversion Efficiency (PV)	98.7%
	European Efficiency	98.1%
PV String Input	Max. PV Input Power	15600W
	Max. DC Input Voltage	1100V
	MPPT Voltage Range	180V–1000V
	Max. Input Current	18A/18A
	Number of MPPT Trackers	2
	Max. Input Strings Number per MPPT	1/1
AC Output	Rated Output Power	12000W
	Max. Output Apparent Power	13200VA
	Nominal Output Voltage	230/400VAC
	Max. Output Current	20A
	Output Voltage Range	180–280VAC (L–N)
	Rated Frequency	50/60Hz
	Output Frequency Range	45–65Hz
	Power Factor	>0.99
	Power Factor Adjustment Range	0.8 Leading to 0.8 Lagging
	Total Current Harmonic Distortion	<2%
General	Ingress Protection	IP66
	Dimensions (DWH mm)	204×450×427
	Net Weight	15.3kg
	Operating Temperature Range	-25°C–60°C; >45°C Power Derating
	Max. Operating Altitude	4000m
	Noise	<45dB
	Power Consumption at Night	<1W
	Cooling Method	Intelligent Fan Cooling
	Communication	WiFi / RS485
	Authentication Level	IEC62109-1, IEC62109-2, IEC61683, IEC62116, IEC61727
Protection	PV Reverse-Polarity Protection	Yes
	Insulation Impedance Detection	Yes
	Residual Current Monitoring	Yes
	Grid Monitoring	Yes
	Overvoltage Protection	Yes
	Overload Protection	Yes
	Short Circuit Protection	Yes
	Over Temperature Protection	Yes
	Surge Protection	DC: Type II; AC: Type II
