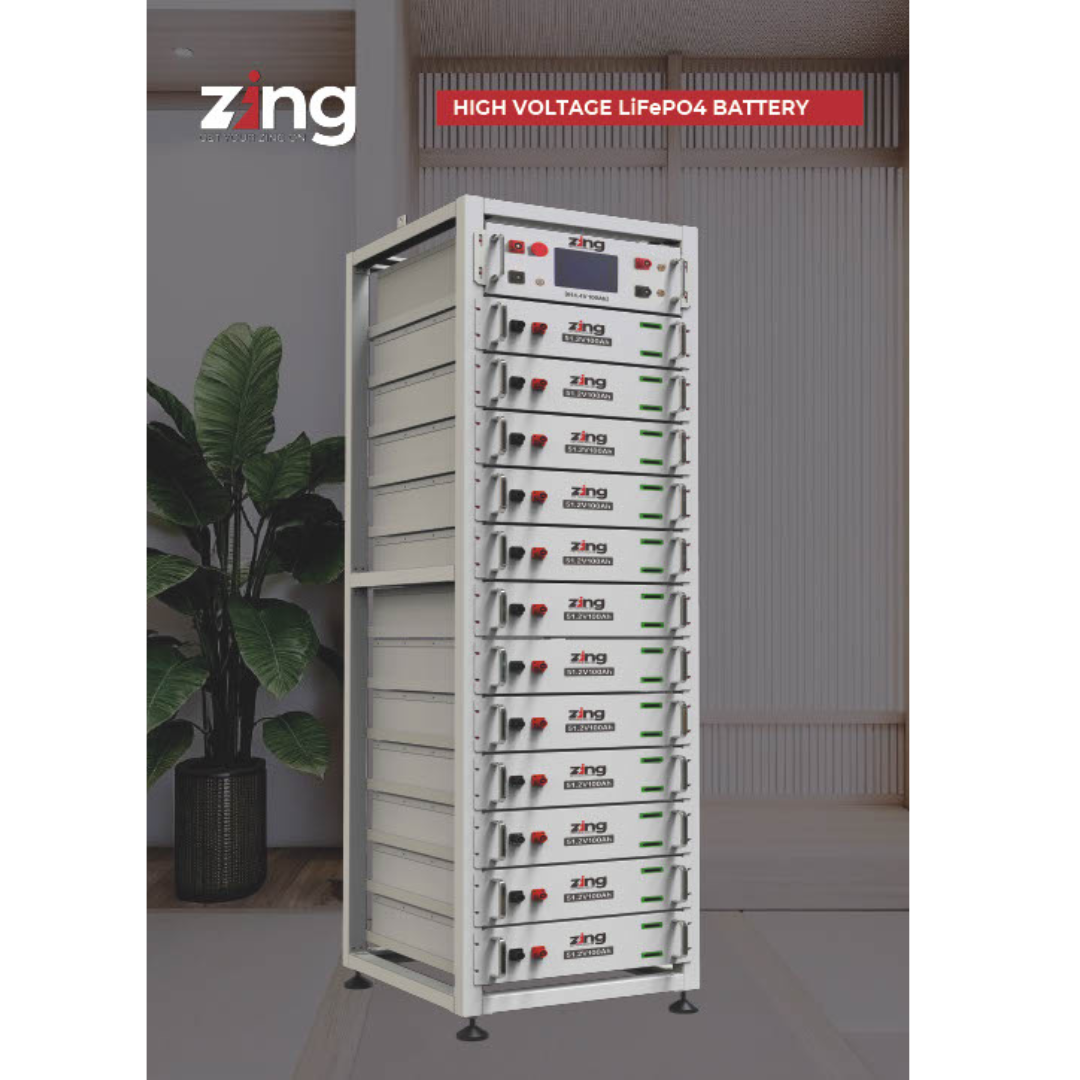

MODEL NO: ZIN-GHV

📑 Specification Table Model ZIN-GHV Battery Type LiFePO4 Module Voltage/Capacity 51.2V / 100Ah 📊 System Data by Number of Modules...

MODEL NO: :

ZIN-GHV

Warrenty :

5 Years

I agree with the terms and conditions

Wishlist Compare

Vendor: Zing

Type: N/a

Sku: N/a

Free shipping

Secure payment

Best Warrenty

Shipping information

Only For Karachi

👀 customers are viewing this product

🔥 13 sold in last 18 hours

Rs.19,999.00

MODEL NO:

Warrenty

Model	ZIN-GHV
Battery Type	LiFePO4
Module Voltage/Capacity	51.2V / 100Ah

Number of Modules	3	4	5	6	7	8	9	10	11	12
System Nominal Voltage (V)	153.6	204.8	256.0	307.2	358.4	409.6	460.8	512.0	563.2	614.4
System Operating Voltage (V)	175.2–233.6	175.2–233.6	195.2–292.0	234.0–350.4	273.0–408.8	312.0–467.2	351.0–525.6	390.0–584.0	429.0–642.4	468.0–700.8
System Energy (kWh)	15.36	20.48	25.6	30.72	35.84	40.96	46.08	51.2	56.32	61.44

Parameter	Value
Recommended charge/discharge current	50A
Max charge/discharge current	100A
Peak Discharge Current	125A
